Understanding the intermittent bonded ribbon production line
Equipment for producing rollable formats in optical-fiber manufacturing is supplied by Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. This setup is designed for 12- and 16-fiber ribbons, allowing buyers to compare its capacity against their planned product range. Factory space and installation needs may also be affected by the system’s split-type construction.
Fiber Coloring Machine SZ Stranding Line Fiber Draw Tower
For this specific production line, the listed construction speed is 600 m/min. Fiber pay-off, gathering and guiding, intermittent resin dispensing, UV-LED curing, visual monitoring, capstan pulling, and take-up are combined in the process. When assessing suitability, the complete process matters rather than speed alone.
Factory utilities, reel requirements, available floor space, and installation conditions should be assessed before purchase. Request the supplier’s documentation package and confirm that the system matches your cable design and operating needs. Early planning for these details can minimize setup delays and make startup smoother.
Key Takeaways
- Intended to produce rollable 12- and 16-fiber formats.
- Listed speed: 600 m/min for this equipment.
- Uses a split-type construction.
- Includes curing, monitoring, pulling, and take-up stages.
- Before purchasing, verify utilities, reels, installation requirements, and supplier documentation.

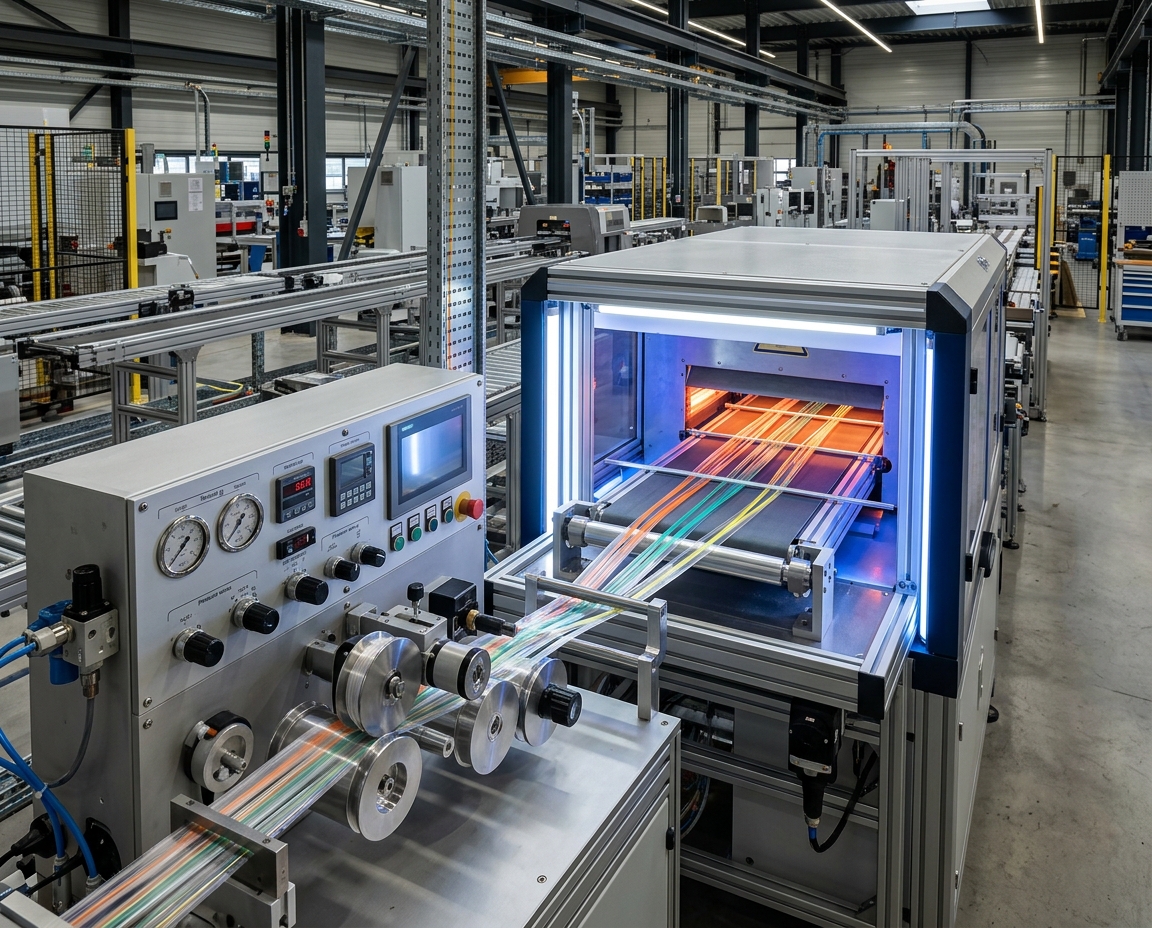

Intermittent Bonded Ribbon Production Line
Explore The Intermittent Bonded Ribbon Production Line
Three mold groups help form rollable IBR formats by positioning fibers for small adhesive dots. Mold position is adjustable by operators from 0 to 15 mm, helping produce consistent spacing and form.
Make Rollable Fiber Ribbons Using Precision Bonding
The machine is supplied by a 16-spool pay-off, and guide rollers with U-shaped grooves help maintain the organization of each strand. Steady contact during processing is supported by the rollers’ hard-anodized surfaces. The adjustable valve arrangement supports 12F and 16F layouts, using 5+5+1 valves for 12 fibers or 5+5+5 for 16. Confirm the required tension control settings with the supplier for your cable design.
Support 12- And 16-Fiber Configurations At Speeds Up To 600 m/min
Construction speed is listed at up to 600 m/min. Pay-off reel options hold 25.2 km or 50.4 km of fiber according to the listed reel dimensions: Φ236 mm × Φ25.4 mm × 108 mm and Φ267 mm × Φ25.4 mm × 180 mm. The system also provides T-type or fiber-optic take-up reels. Compare reel capacity with your operational requirements and expected changeover time.
Review The Production Line’s Key Equipment And Controls
Tension, resin placement, and UV exposure must work together to deliver reliable output. The system helps operators match settings to their cable design and fiber ribbon requirements.
Coordinate Fiber Tension, Resin Dispensing, And UV-LED Curing
Electro-pneumatic adjustment is provided for each pay-off unit. Through the interface, operators set adhesive-dot spacing and counts while dispensers work individually or in linked groups.
Three pre-curing ovens serve the mold groups ahead of UV-LED post-curing. Verify resin compatibility and operating conditions with the supplier.
The Siemens PLC and touchscreen show lamp current and oven temperature, generate alarms, and support preset lengths. Before purchase, verify cabinet requirements and power supply needs.
| Stage | Technical Specification | Buyer verification |
| Tension of fibers | Pay-off: 0.4 to 2 N, ±0.02 N; capstan: 50 to 500 g, ±5 g accuracy | Match settings to cable needs |
| Dispensing of resin | Individually operated or linked units with adjustable adhesive-dot spacing and count | Review interface settings |
| UV-LED curing | Three pre-curing ovens rated 800 W each; one post-curing oven rated 6 kW; 395 nm ± 3 nm; at least 85% cure during stable, high-speed operation | Confirm resin compatibility |
| Process monitoring | Siemens S7-1200 or S7-1500 PLC; 10.4-inch touchscreen; real-time lamp current and oven temperature, alarms, preset lengths | Verify cabinet and power supply requirements |
Plan Installation, Operating Conditions, And Line Configuration
Prepare a designated area before the equipment arrives. An enclosed, clean, dry, draft-free space is required for the optical fibre system. Keep the temperature from 15°C to 25°C, with humidity no higher than 85%. Maintaining these conditions supports equipment protection and operating precision.
Review site utilities, electrical capacity, cabinet space, and cable design with your facilities team. The system needs nitrogen supplied at 7 bar and 99.99% purity, together with compressed air at 6 bar. A three-phase, five-wire electrical supply rated 380 V ±10% is specified.
- Allow space for the cabinet, components, resin, and access to service parts. Before starting the line, confirm the temperature settings and tension control.
- Plan around the specified reel dimensions of Φ410 mm × Φ50.8 mm × 391 mm. The take-up unit accepts reels weighing up to 30 kg.
- Include the main power feed-in cable in your site plan. The equipment package does not include connection cables and cable trays.
The supply scope, reel types, and installation needs should be checked before placing an order. This assessment can shorten setup time and help prevent later delays. Ask the supplier to verify settings for your fiber and cable design, including lamp accuracy and operating conditions. A clear plan helps the production system start more smoothly.
Obtain Pricing For A Ribbon Production Solution Matched To Your Needs
At its stated speed of 600 m/min, this line can be assessed by manufacturers producing rollable 12- or 16-fiber formats. When requesting a quote, share your fiber layout, output goals, cable requirements, reel preference, and factory conditions.
Confirm that the proposed system includes the 16-spool pay-off, UV-LED curing arrangement, take-up capacity, and relevant options. Before ordering, review the included components, dispensing-head options, unit functions, and cable design.
Listed documents include operating and maintenance manuals, a general layout drawing, electrical schematics, and a wear-parts list. Reviewing these documents can help explain setup time and future service requirements.
Contact Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. to obtain pricing and configuration details that suit your output plan and site utilities. Verify the supply scope and replacement parts before purchase.
